Forge 60 first release

Forge 60

A compact high-output work light built around 60W sustained output, active cooling, and a verified internal layout.

Buy now View open source project
Mecha Edition Forge 60
01 60W / 10000 lm
02 45W Type-C power

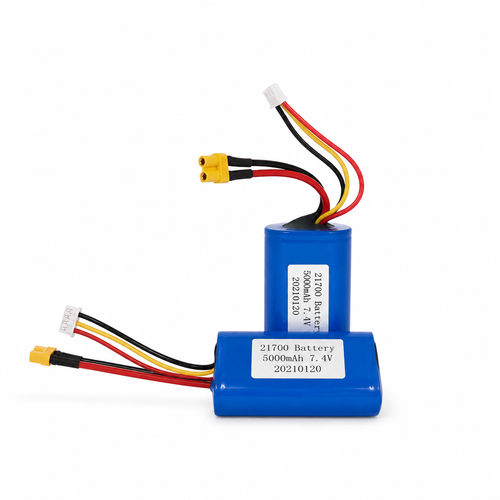

03 2x power 21700
00

Verified product geometry

Complete Forge 60 assembly

Technical parameters

Forge 60 detailed specification.

Output 60W / 10000 lm 60W mode does not step down under normal use.
Runtime 27 min / 54 min / 8 h 60W, 30W, and 3W modes respectively.
USB-C power 45W charge and discharge Full charge is about 1 hour.
Main PCB 1.0mm board IP2369 charge and discharge IC.
LED board 1.6mm board Separated from the main-board hardware.
Thermal stack 30x30x50mm heatsink Paired with a 3010 cooling fan.
Battery system 2x power 21700 cells Uses a 2S 13A protection board.
Front cover 74mm protection glass Part of the lamp-head assembly.

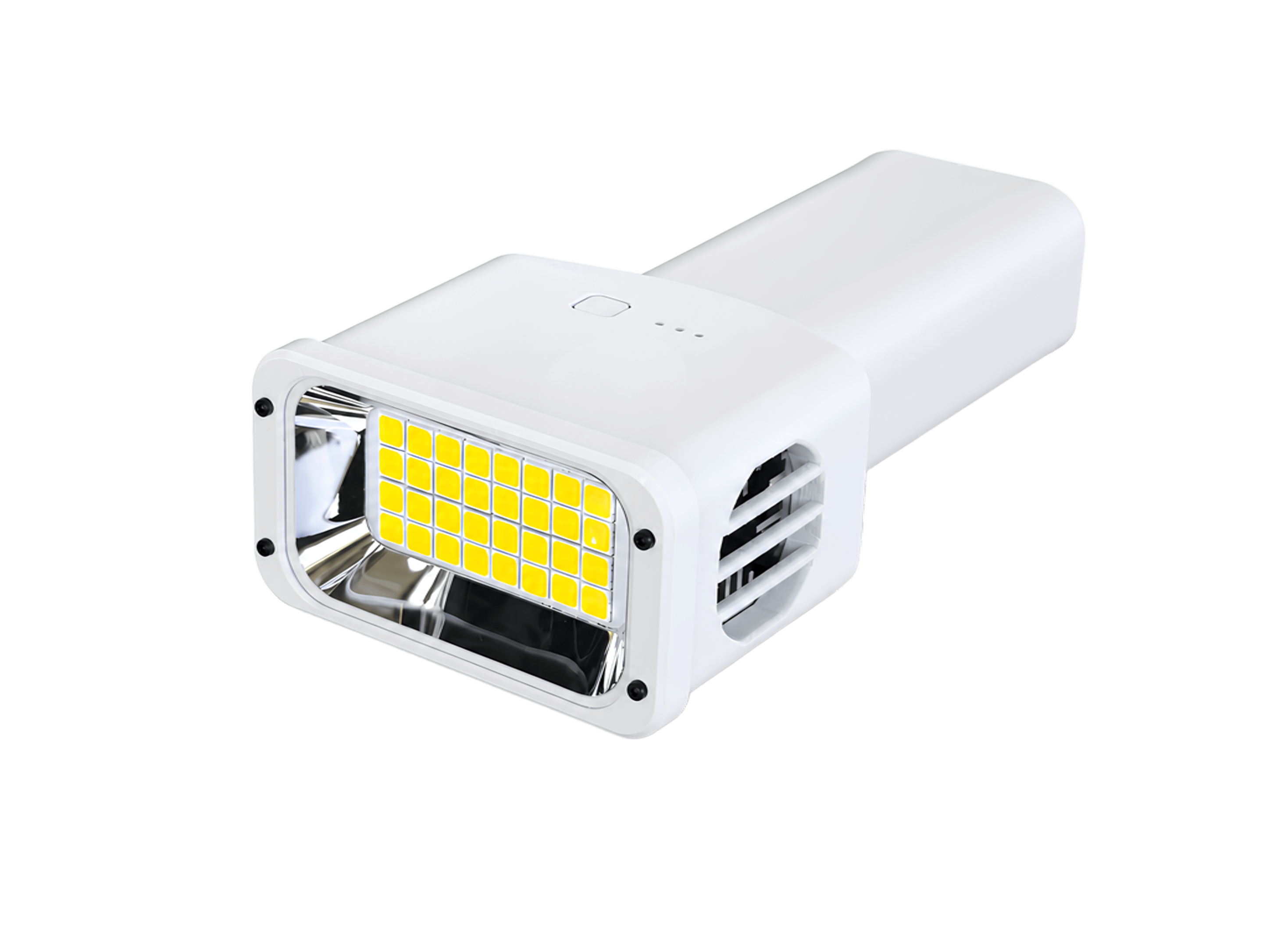

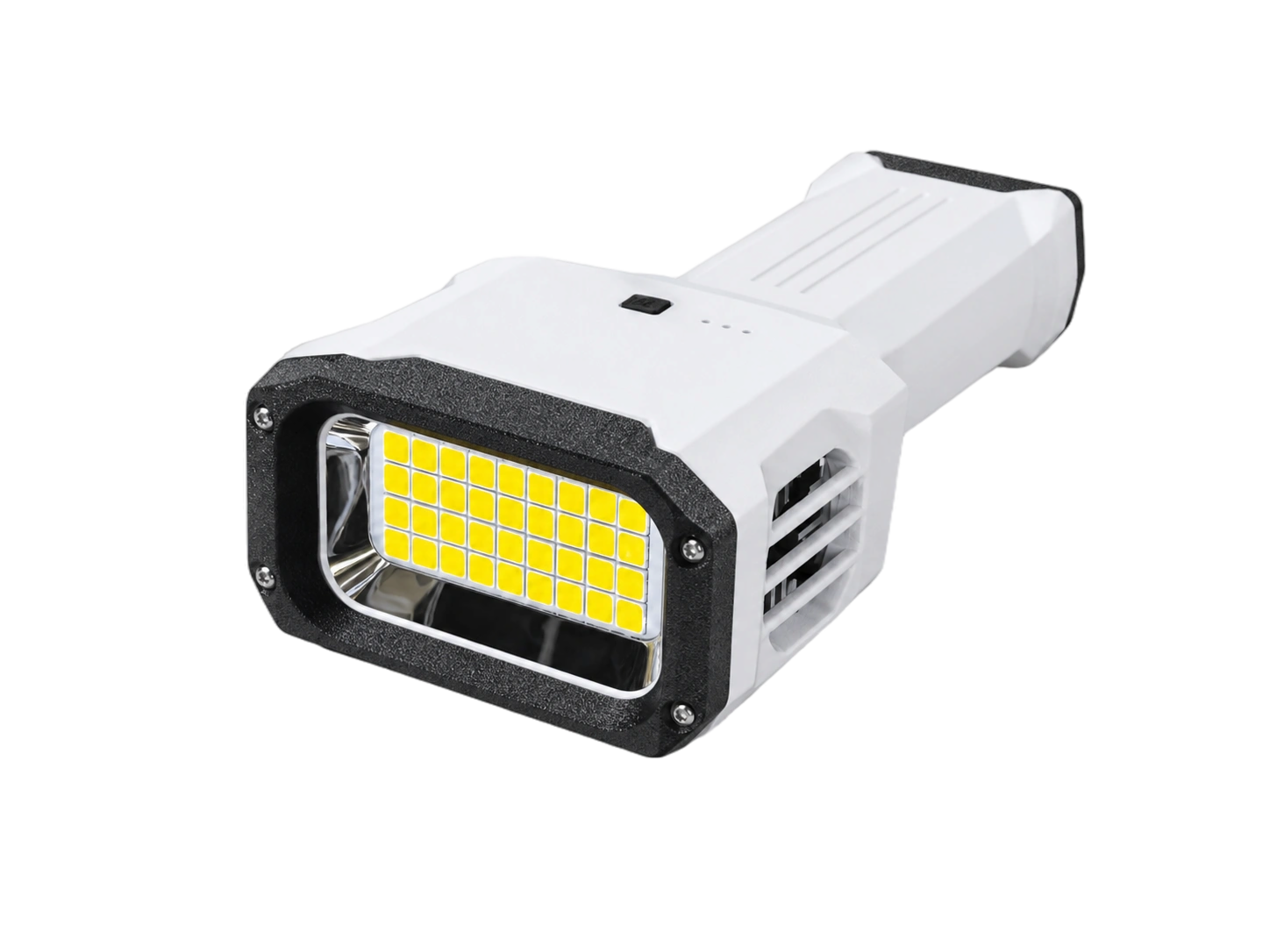

Mecha Edition Forge 60 Standard Edition white Forge 60
Mecha Edition Standard Edition

Product

Forge 60

A high-output handheld work light available in Mecha and Standard editions, with active cooling, 45W Type-C power, and a two-cell 21700 battery bay.

Peak60W / 10000 lm
Power45W Type-C charge / discharge
Cells2x power 21700
Cooling30x30x50mm heatsink + 3010 fan
60WAbout 27 min
30WAbout 54 min
3WAbout 8 hours
Buy Forge 60 Inspect the model
Parts kit

Ships as separated parts. Forge 60 is not a fully assembled light.

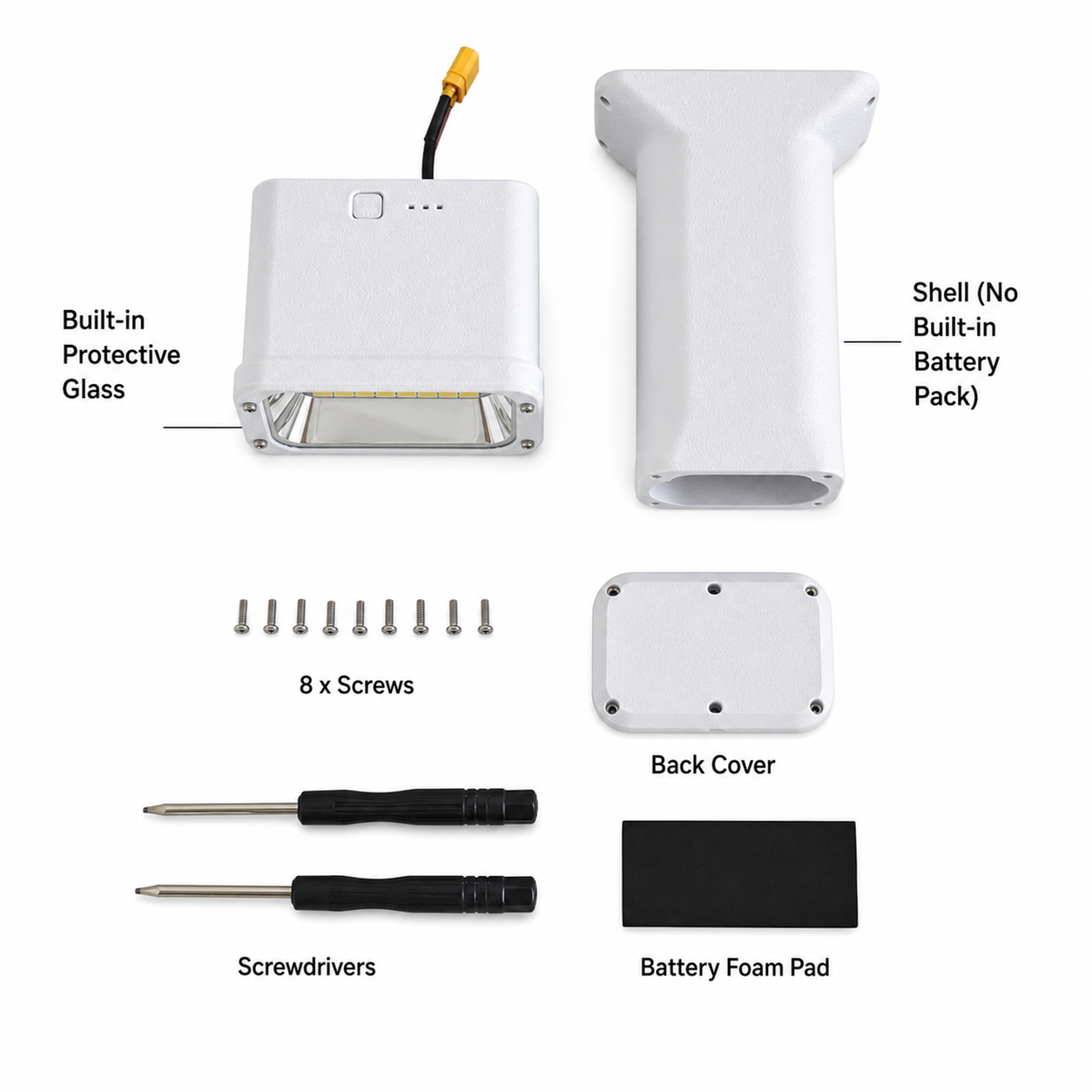

Kit layout Forge 60 separated kit parts arranged on a white background

What ships in the box Separated

Simple final assembly

Not a fully assembled light. Ships as separated PETG-FG 3D-printed parts and core modules.

  • Forge 60 main module x1
  • Front protection glass x1
  • PETG-FG 3D-printed shell set x1
  • Rear cap x1
  • Battery foam x1
  • Screw set x1
  • Core hardware modules set
Output 60W / 10000 lm
USB-C 45W charge / discharge
Battery 2x power 21700
Structure PETG-FG printed body
Assembly guide 1 Seat body parts 2 Fit glass 3 Close rear cap 4 Tighten screws
Large PETG-FG 3D-printed parts and core modules are packed separately for transport. Not finished goods. Customer assembly required.

Before you order

Forge 60 FAQ

Clear answers about the kit format, batteries, assembly, tools, USB-C power, and 60W thermal design.
Is Forge 60 fully assembled?

No. Forge 60 ships as a separated parts kit for simple final assembly.

Are batteries included?

No. Batteries are not included. Forge 60 uses two power-type 21700 cells.

Does it require soldering?

No soldering is required for normal final assembly.

What tool do I need?

A screwdriver is required for assembly.

How difficult is the assembly?

The kit is designed for simple final assembly: seat the body parts, fit the front glass, close the rear cap, and tighten the screws.

How does it handle heat at 60W / 10000 lm?

The 60W mode uses a dedicated 30x30x50mm heatsink and a 3010 fan to move heat away from the LED head. High-output mode still produces heat during use.

Can it charge over USB-C?

Yes. Forge 60 is specified around 45W Type-C charge and discharge hardware.

Who is this kit for?

Forge 60 is best for users who are comfortable with simple screw-based assembly and want a repairable, hardware-transparent work light.

Open source hardware

Forge 60 board files

View on GitHub Access the Forge 60 hardware release, board files, BOM, and source project. Join our Discord Talk with the creator and get community support for the hardware release.
Included files git clone https://github.com/BMHX/modelyard-hardware.git
mainboard-v2/ Mainboard release

Recommended main control and power board files.

Gerber ZIPBOMPNPPDF
led-board-5050/ 5050 LED board

LED board fabrication, placement, schematic, and preview files.

Gerber ZIPBOMPNPPDF
source/ EasyEDA Pro source

Original Forge 60 EasyEDA Pro hardware source project.

EPRO2
docs/ File checklist

Checklist covering the exact released board files and README notes.

MDLICENSE
