Forge 201

$140.00

Taxes included. Shipping calculated at checkout.

Forge 201 is an actively cooled sustained-output flashlight kit capable of operating continuously at 200W / 30,000 lm without planned step-down under normal operating conditions.

Peak output: 200W / 30,000 lumens
Runtime: approximately 19 minutes at 200W and 5 hours at 15W
Weight: approximately 720g
Power control: IP2369 with fixed CMSA070N10 main MOSFET
Light engine: fourth-generation CXM32, 6500K, Ra70
Battery system: 4S pack using four high-discharge 21700 cells
Thermal system: 50 × 50 × 50 mm heatsink with a 5010 dual-ball-bearing 7000 RPM fan
Front protection: 74 mm coated glass

Battery options

Without Battery (default): No battery pack is included. Forge 201 requires a compatible 4S pack built from four matched high-discharge 21700 lithium-ion cells (14.4-14.8V nominal / 16.8V fully charged) with an NTC-equipped protection board. The recommended protection board is rated for 50A; a compatible 25A NTC board is the value alternative.

With Battery: Includes one compatible four-cell 21700 battery pack.

Forge 201 ships as an advanced parts kit for experienced builders and is not a fully assembled sealed flashlight.

Transparent specs

Secure checkout

Known components

Privacy policy

Forge 201 is a sustained-output 200W flashlight kit rated at 30000 lm. It weighs approximately 720g, runs for about 19 minutes at 200W or about 5 hours at 15W, and uses a fourth-generation CXM32 6500K emitter with active cooling.

Forge 201 ships as an advanced parts kit, not as a fully assembled sealed unit. The package contains printed body parts, optical components, cooling hardware, and electronic modules for builder assembly. The default Without Battery version requires a compatible 4S pack built from four matched high-discharge 21700 cells with an NTC-equipped protection board. The With Battery version includes one compatible battery pack. Checkout and order processing run through Shopify. Order updates, shipping notices, and customer support should use the contact details provided at checkout.

Parts kit

Ships as separated parts. Forge 201 is not a fully assembled light.

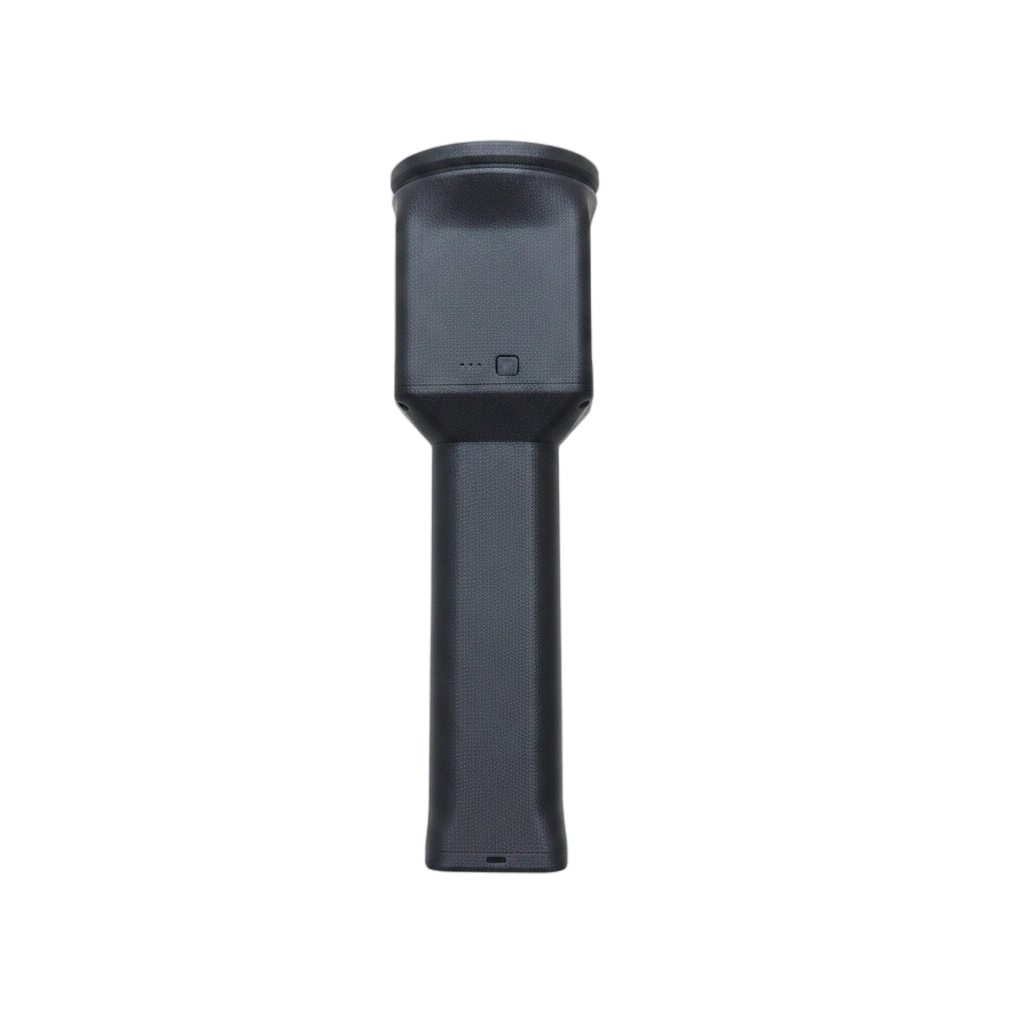

Kit layout Forge 201 black high-output flashlight front body view

What ships in the box Separated

Advanced builder assembly

Not a fully assembled light. Ships as separated printed parts, optical components, cooling hardware, and electronic modules.

Forge 201 main module x1
4th-gen CXM32 light engine x1
74mm coated protection glass x1
Printed shell set x1
Rear cap x1
Battery foam x1
Screw set x1
Core hardware modules set

Output 200W / 30000 lm

Runtime 19 min at 200W

Weight Approximately 720g

Battery 4S / 4x 21700

Assembly guide 1 Seat body parts 2 Fit glass 3 Close rear cap 4 Tighten screws

Is Forge 201 fully assembled?

No. Forge 201 ships as a parts kit for experienced builders.

Is a battery included?

The default Without Battery version does not include a battery. It requires a compatible 4S pack built from four matched high-discharge 21700 lithium-ion cells (14.4-14.8V nominal / 16.8V fully charged) with an NTC-equipped protection board. The With Battery version includes one compatible four-cell battery pack.

What tools are required?

The full build may require a 3D printer, soldering equipment, drilling and tapping tools, and general electronics assembly tools.

How long does it run?

Approximate runtime is 19 minutes at 200W and 5 hours at the 15W setting. Actual runtime depends on battery capacity, cell condition, and cooling conditions.

How difficult is the assembly?

This is an advanced high-power build. It is intended for users with practical electronics, thermal assembly, and mechanical fitting experience.

How does it manage heat at 200W?

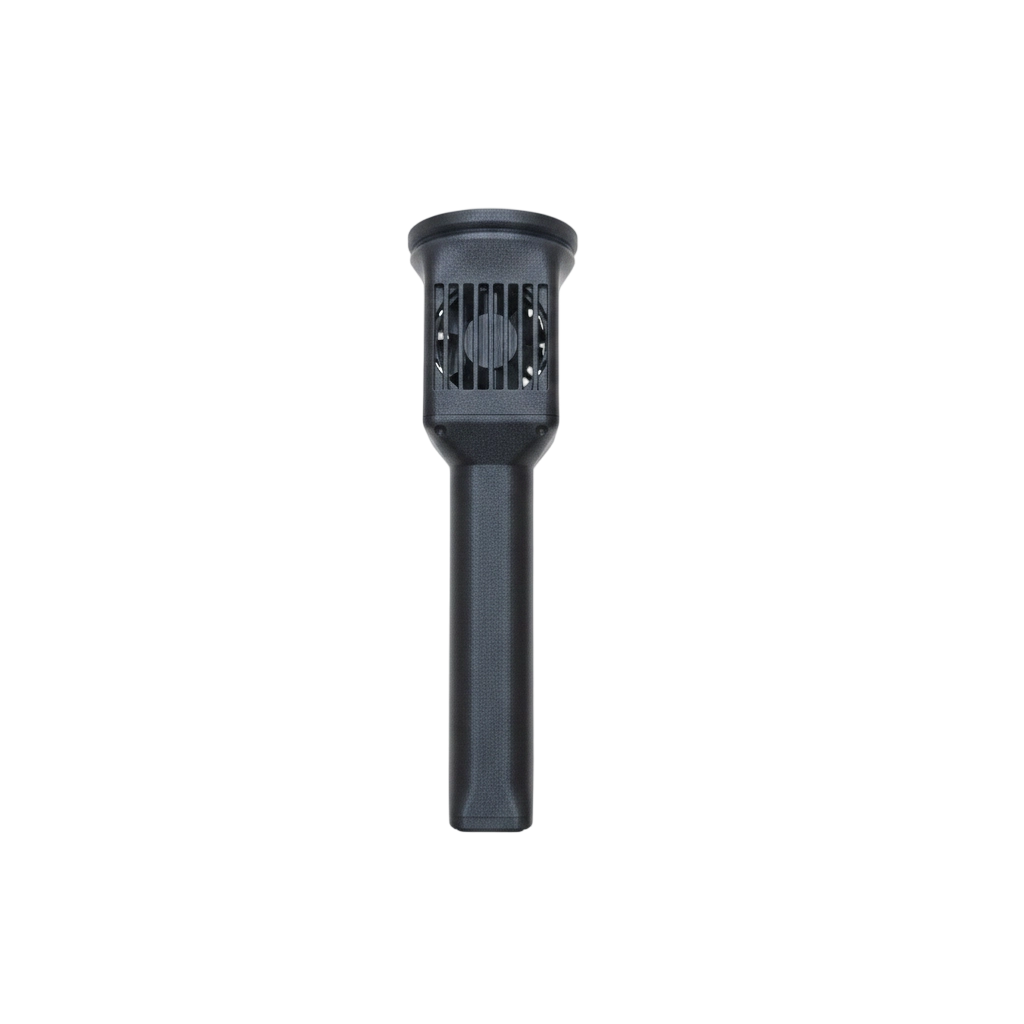

The thermal system uses a 50x50x50mm heatsink and a 5010 dual-ball-bearing fan. Cooling performance must be verified during assembly before sustained high-power operation.

How heavy is Forge 201?

The assembled light weighs approximately 720g. Final weight can vary slightly with the battery pack and printed-part configuration.

Who is this kit for?

Forge 201 is for experienced builders who understand high-current electronics, active cooling, mechanical assembly, and safe testing procedures.

System	Specification	Value	Build note
Light output	Peak mode	200W / 30000 lm	Active cooling is designed for sustained output without planned step-down under normal use.
Runtime	Output modes	19 min at 200W / 5 h at 15W	Runtime values are approximate and depend on battery condition and thermal environment.
Weight	Assembled light	Approximately 720g	Final weight may vary slightly with the selected battery pack and printed parts.
Main PCB	Power management	IP2369 / CMSA070N10	The CMSA070N10 main MOSFET model must not be substituted.

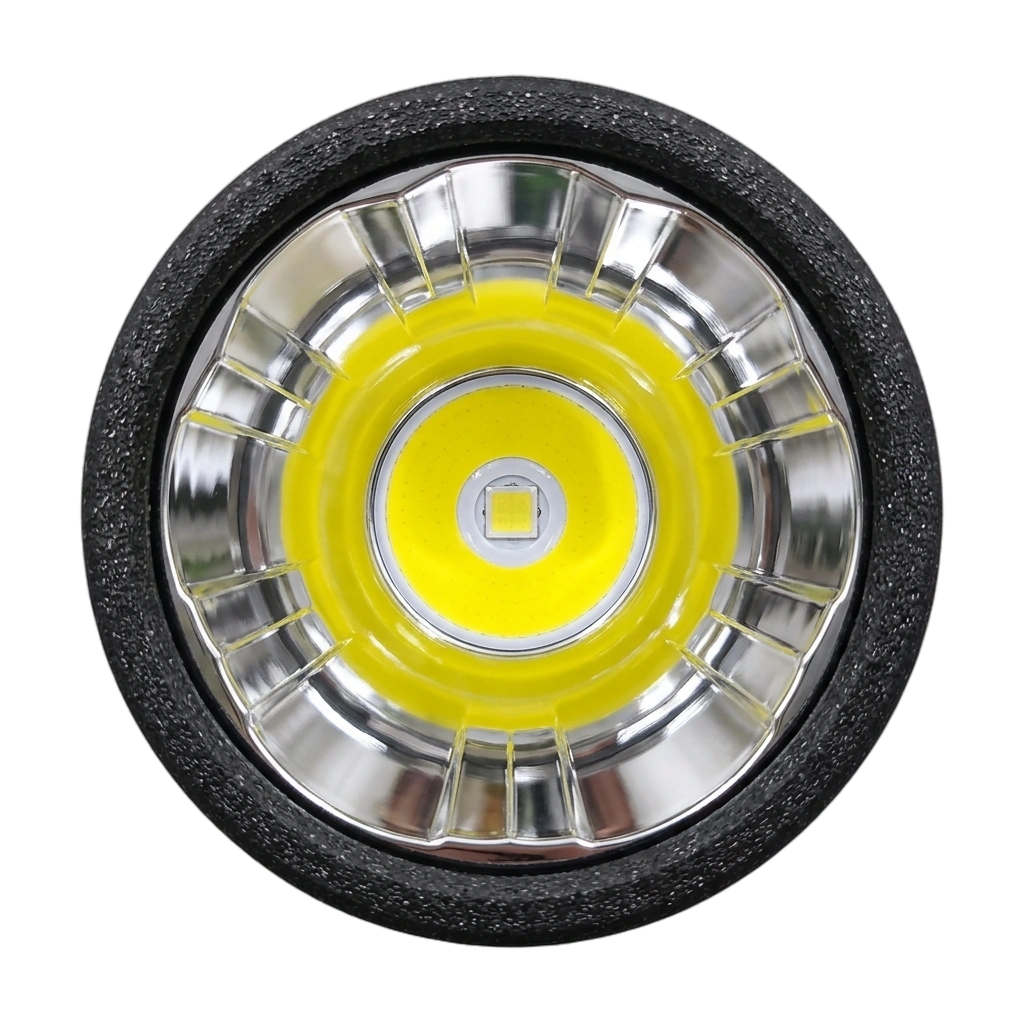

Light engine	Emitter system	4th-gen CXM32 / 6500K / Ra70	Two 8.2mm copper SMD high-current jumpers support the LED-board connection.
Thermal stack	Heat dissipation	50x50x50mm heatsink / 5010 fan	The 5V dual-ball-bearing fan is operated at 8.4V only after stability verification.
Battery pack	Cell system	4S / 4x high-discharge 21700	Recommended protection is a 4S 50A board with NTC; a 4S 25A NTC board is the value alternative.
Front optics	Protection	74mm coated glass	Reflective film and coated glass complete the front optical stack.

Reference parts list

Forge 201 build materials.

Component names, specifications, and quantities only. Purchasing links are intentionally omitted.

Group	Part	Specification	Qty
Main board	Charge / discharge IC	IP2369	1
Main board	Main MOSFET	CMSA070N10, fixed model	As designed
LED board	Emitter	4th-generation CXM32 / 6500K / Ra70	1
LED board	High-current PCB jumper	8.2mm copper SMD jumper	2
Battery pack	Protection board	4S 50A with NTC, recommended	1
Battery pack	Alternative protection board	4S 25A with NTC	1
Battery pack	Power cells	21700 power cells, JP40 / 45D / RS50 class	4
Thermal	Heatsink	50x50x50mm	1
Thermal	Cooling fan	5010 / 5V / dual-ball-bearing / 7000 RPM	1
Optics	Coated protection glass	74mm	1
Connector	XT30 male connector	XT30 male	1
Connector	XT30 female connector	XT30 female	1
Harness	GH1.25 2P lead	100mm / single-end lead	2
Harness	Soft silicone wire	Red and black / 20AWG	As needed
Harness	Soft silicone wire	Red and black / 16AWG	As needed
Fastener	Heat-set insert	M1.4x4x2.3	4
Fastener	Heat-set insert	M2.5x5x3.5	4
Fastener	Hex screw	1.4x4 / full thread	4
Fastener	Round-head hex screw	2.5x8	4
Fastener	Self-tapping flat-head screw	M2.6x20	4
Assembly	Thermal double-sided tape	25mm x 0.15mm	As needed
Assembly	Shock-absorbing foam	2mm thick / 20mm wide / 5m long	As needed
Assembly	High-temperature tape	24mm wide / 33m long	As needed
Optics	Reflective film	0.1mm	As needed
Assembly	Thermal grease	General-purpose thermal grease	As needed
Optional tools	PWLINK2 LITE programmer	Programming tool	1
Optional tools	Programming probe	4P / 1.27mm pitch / diamond tip	1
Optional tools	Hex screwdriver	H1.3	1
Optional tools	Hex screwdriver	H1.5	1

Performance proof

Peak output 200W / 30000 lm

Active cooling is designed to sustain the 200W mode without planned step-down under normal operating conditions.

Runtime 19m / 5h

Approximate runtime is 19 minutes at 200W and 5 hours at the 15W setting.

Weight ~720g

The assembled light balances a high-output thermal system with a handheld body format.

Battery system 4S / 4x 21700

A high-current 4S pack with NTC-equipped protection supports the sustained-output power stage.

Specification-backed claims

Performance messaging is tied to concrete hardware: the IP2369 controller, fixed CMSA070N10 main MOSFET, fourth-generation CXM32 emitter, high-current battery pack, and active thermal system.
